HENAN KONE CRANES CO.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | KN |
| Certification: | BV CE ISO |
| Model Number: | LB |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 30work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000PCS |
| Applicable Industries:: | Construction Works | After Warranty Service:: | Field Maintenance And Repair Service |
|---|---|---|---|
| Marketing Type:: | New Product 2020 | Warranty Of Core Components:: | 1 Year |
| Working Temperature:: | -25℃-+40℃ | Operation Method:: | Cabin + Remote Control |
| Working System:: | A5, A6 | Limit Switch:: | Included |
| Highlight: | 8T Single Girder Overhead Crane,9m Single Girder Overhead Crane,8T sg eot crane |
||

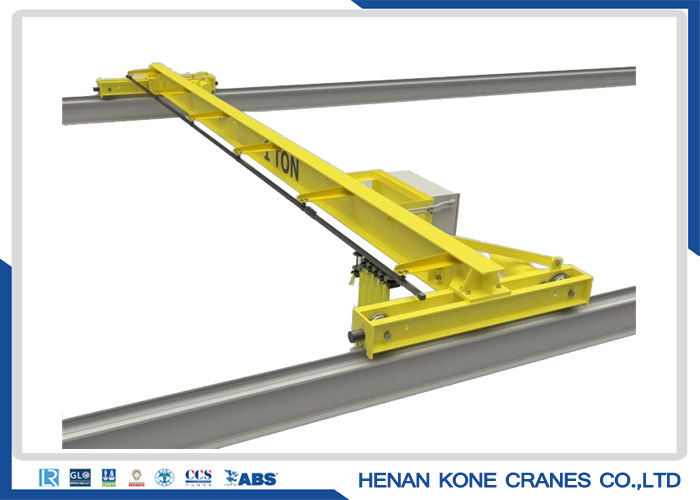

European Style 5t/8t/10ton Customeized Electric Single Girder Overhead Crane
Explosion-proof single beam (electric suspension) (LB, LXB) crane use
Explosion-proof single-beam cranes are widely used in factories with inflammable, explosive and corrosive media environments, warehouses, stockyards and other occasions for lifting goods. Explosion-proof grade dIIBT4
This product has two operation modes: ground and control room. There are two types of control room, open type and closed type, which can be divided into two types for installation on the left or right according to the actual situation. There are two types of entry directions, side and end, to meet the needs of users in various situations.
| LB Type Electric Single-girder Underslung Crane 5t | |||||||||
| Span | S(m) | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| Lifting height | m | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 |
| Lifting speed | m/min | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Trolley speed | m/min | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Crane speed | m/min | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Lifting motor | kw | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 |
| Trolley motor | kw | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
| Total weight | t | 1.28 | 1.36 | 1.44 | 1.52 | 1.60 | 1.92 | 2.02 | 2.12 |
| Max wheel load | t | 2.92 | 2.94 | 2.96 | 2.99 | 3.01 | 3.10 | 3.12 | 3.15 |
| Track | I36a | I36a | I36a | I36a | I36a | I36a | I36a | I36a | |
| Main dimension | mm | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| Girder edge to hook | h | 1320 | 1320 | 1320 | 1320 | 1320 | 1320 | 1320 | 1320 |
| Wheel base | W | 1000 | 1000 | 1000 | 1000 | 1000 | 1500 | 1500 | 1500 |
| Crane width | B | 1500 | 1500 | 1500 | 1500 | 1500 | 2000 | 2000 | 2000 |
| Hook left limitation | S1 | 302 | 302 | 302 | 302 | 302 | 302 | 302 | 302 |
| Hook right limitation | S2 | 170 | 170 | 170 | 170 | 170 | 170 | 170 | 170 |
| Left cantilever | L1 | 750 | 750 | 750 | 750 | 750 | 1000 | 1000 | 1000 |
| Right cantilever | L2 | 750 | 750 | 750 | 750 | 750 | 1000 | 1000 | 1000 |
| Note: Control mode for ground operation | |||||||||
